CREM｜Diamant Pro 2GR Two Group Commercial Espresso Machine

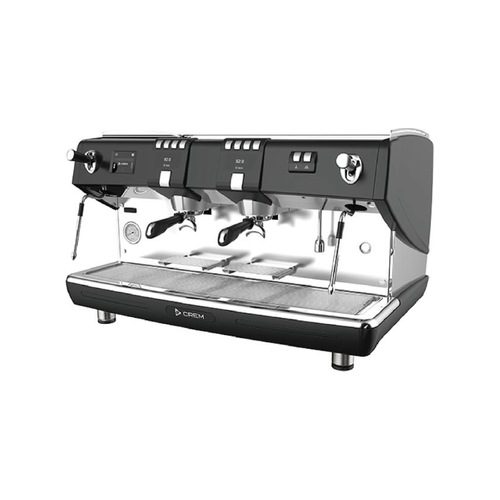

Model: Diamant Pro 2GR

Booth No: N/A

Characteristic

Model: Diamant Pro 2GR
Boiler: 11.5 litres plus an independent boiler per group
Temperature control: PID, adjustable per brew group
Power: 3050W/230V or 4500W/380V (220-240 V three phase, 4-6 kW)
Operating pressure: 0.8 to 1.2 bar
Dimensions (H × W × D): 535 × 885 × 620 mm
Weight: 91.5 kg
Features: direct pre-infusion, 3 steam wands, 2 automatic hot water outlets, four-step dosing

Bar planning notes
- Stability: an independent PID per group lets light and dark roasts run at their own temperatures at the same time
- Peak rhythm: four-step dosing with two hot water outlets removes two waiting points from the line
- Counter presence: the flagship body can be finished in a custom colour, so the machine becomes part of the interior
- Service: automatic backflush gives daily maintenance a fixed procedure

Installation notes
Requires a 230V or 380V supply. Pair with water treatment and a 3/8" supply, and allow 65 cm or more of counter depth. Grinder and surrounding layout are planned together with your bean list and cup volume.

On display at the booth. The EX3 2GR from the same range runs live on the bar for direct comparison.
