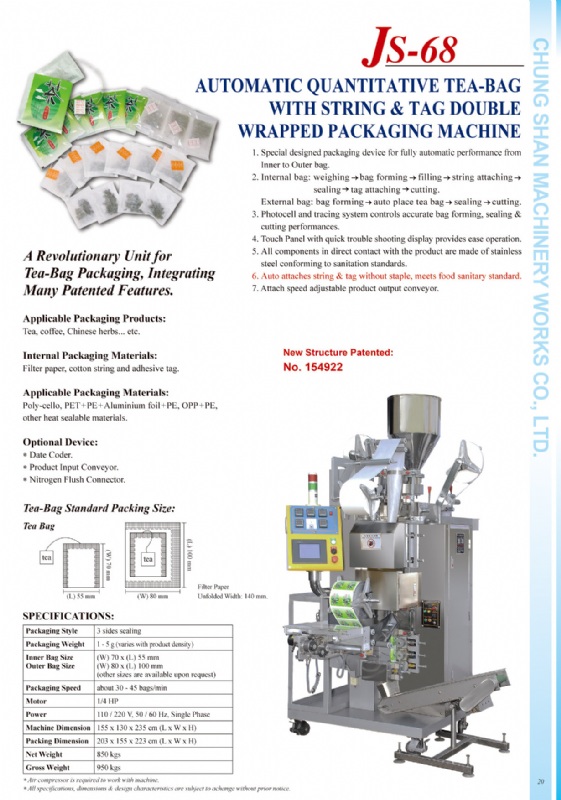

Tea Bag Packaing Machine

Model: JS-68

Exhibitor: CHUNG SHAN MACHINERY WORKS CO., LTD..

Booth No: 1-114

Characteristic

-PLC control + Touch Panel for easy operation.

-Japan Panasonic eye mark sensor for tracing eye mark spot and cutting precisely.

-Devices automatically attach the tag to the string, and the string to the tea-bag.

-No staples are needed, meeting all sanitation and health requirements.

-Automatically performed:
*****Inner tea bag: from weighing→bag forming→filling→string attaching→sealing→tag attaching→cutting.
*****Outer AL bag: bag forming→put in inner tea bag→sealing→cutting.

-Convenient adjustment of measuring cups.

-There is a touchable screen on the machine. It can be setting various parameters for easy operation.

-Monitor for packing product, string, tag, filter paper and outer bag.

-Transmission with SMC cylinder drive.

-Temperature controller with PID function with stability sealing performance.

-Film sensor with auto stop mode.

-Auto warning light indication.

-Auto warning system with touch panel

-Machine body build with iron cast with stainless steel frame
