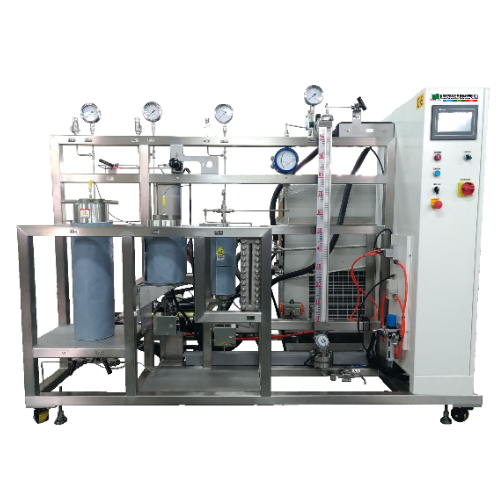

Supercritical CO2 5L Extraction Equipment

Model: SE-051

Category:

Exhibitor: TAIWAN SUPERCRITICAL TECHNOLOGY CO., LTD.

Booth No: J416

Characteristic

Specifications of system
1. Maximum extracting pressure: 500 Bar. (7,250PSI)
2. Maximum extracting temperature: 80℃.
3. Extraction vessel(Basket is included) : 5L x1
Safety Protection
1. Rupture disk / Safety relief valve.
2. Over-pressure auto shutdown.
3. Jacket insulation protect with the heating part.
Control and monitor system
1. Main Control Valve: High Pressure Manual type needle valve.
2. Flow rate monitor: Display on flow meter.
3. Liquide level monitor: Reflex liquid level gauge.
4. Temperature & Pressure Monitor and control system: color Touch Panel HMI and pressure Gauges.
Main unit:
1. Extraction Vessel x1（MAWP=7250Psi / 500 Bar）
2. Separation Vessel x2
3. CO2(L) pump
4. Co-Solvent pump
5. Cooling System: Cooling capacity 2.4KW
6. Heating system: Electric heating.
