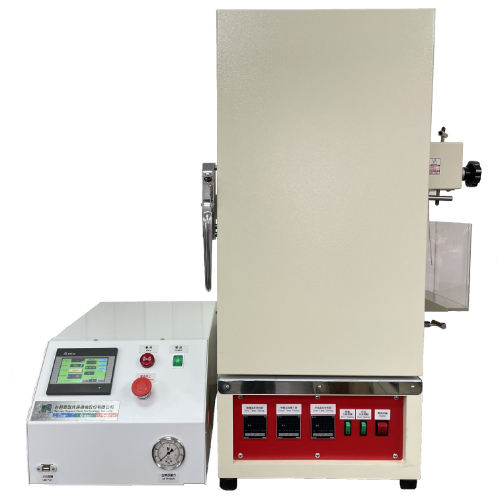

Supercritical CO2 Oven Extraction Equipment

Model: OV-SCF-10000

Category:

Exhibitor: TAIWAN SUPERCRITICAL TECHNOLOGY CO., LTD.

Booth No: J416

Characteristic

Oven Extraction Furnace
1. Operation temperature: room temperature ~220 ℃
2. Operation pressure: Operating pressure up to 7250 psi (MWAP=7250 PSI)
3. Operation capacity: Optional 60 / 250 / 1000ml High-pressure extraction vessels
4. Double extraction loop: Optional 1 or 2 extraction loop
5. Extraction mode: dynamic and soak extraction
6. Cleaning method: capable of solvent injection device
7. Flow control: Adjustable flow rate control with display of CO2 flow rate
8. Certification: Whole system pass CE

Digital Pressure Control Module(PM-10000C)
1. System output pressure: 1500~10000 psi(depending on driving pressure)
2. System output flow rate: 200ml/min (up to 4350 psi)
3. Touch-Panel for Pressure Control Systems and human-machine operation interface
4. Programmable pressure control system
5. Proportional precise pressure control
6. Multi-step for booster and immediately adjust / response control
7. Alarm (notice) for abnormal operation and operation timer
8. Certification: Whole system pass CE
9. Safety Protection
(1) Overpressure abnormal alarm devices
(2) Emergency stop devices and automatic gas cut-off installations for overpressure
(3) Safety relief valve for overpressure (full flow rate)
