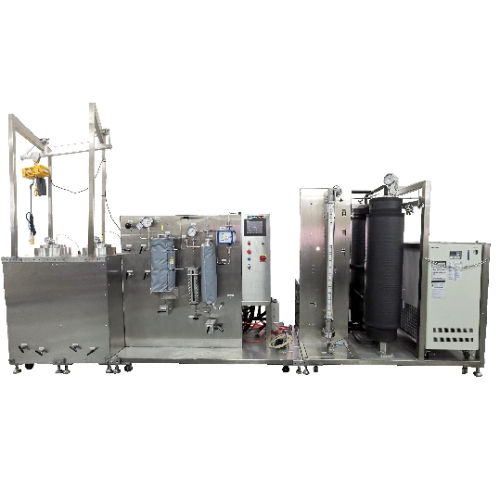

Supercritical CO2 20L / 40L Extraction Equipment

Model: SE-201 / SE-202

Exhibitor: TAIWAN SUPERCRITICAL TECHNOLOGY CO., LTD.

Booth No: J516

Characteristic

Specifications
1. Maximum extracting pressure: 500 bar. (7,250PSI)
2. Maximum extracting temperature: 80℃.
3. Extraction vessel: 20L x1 or 20L x 2
4. Volume=18L x 1 or 18 x 2 (inner basket)
5. CO2(L) pump
6. Co-Solvent pump
7. Cooling System
8. Heating system: Electric heating.
9. CO2 Recovery System: Recovey rate is around 70%, recovered by pressure difference.

Control and monitor system
1. Main Control Valve: High Pressure Manual type needle valve.
2. Temperature & Pressure Monitor and control system: 7" color Touch Panel HMI.
3. Flow rate monitor: Display on flow meter.
4. Liquid level monitor: Reflex liquid level gauge.
5. Electrical Hoisting System

Safety Protection
1. Rupture disk / Safety relief valve.
2. Over-pressure auto shutdown.
3. Jacket insulation protect with the heating part.
