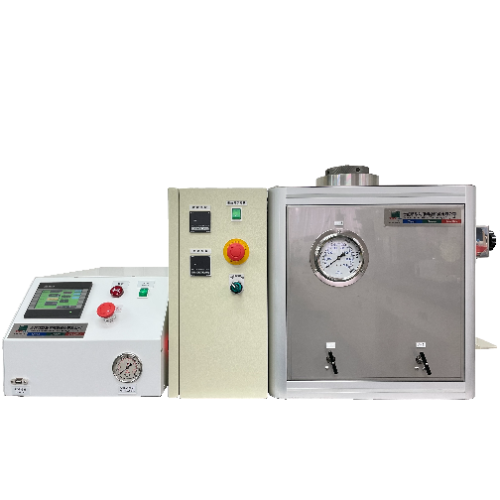

Supercritical CO2 2L Extraction Equipment

Model: SE-2000-10000

Exhibitor: TAIWAN SUPERCRITICAL TECHNOLOGY CO., LTD.

Booth No: J516

Characteristic

Supercritical 2L Extraction Module
1. Pressure=Max. 7250 Psi / 500 Bar
2. Temperature=Max. 100 ℃
3. Volume=2LX1 (inner basket)
4. Collection system=1 set
5. Safety Protection
6. Certification: Whole system pass CE

Digital Pressure Control Module(PM-10000C)
1. System output pressure: 1500~10000 psi(depending on driving pressure)
2. System output flow rate: 200ml/min (up to 4350 psi)
3. Touch-Panel for Pressure Control Systems and human-machine operation interface
4. Programmable pressure control system
5. Proportional precise pressure control
6. Multi-step for booster and immediately adjust / response control
7. Alarm (notice) for abnormal operation and operation timer
8. Certification: Whole system pass CE
9. Safety Protection
(1) Overpressure abnormal alarm devices
(2) Emergency stop devices and automatic gas cut-off installations for overpressure
(3) Safety relief valve for overpressure (full flow rate)
