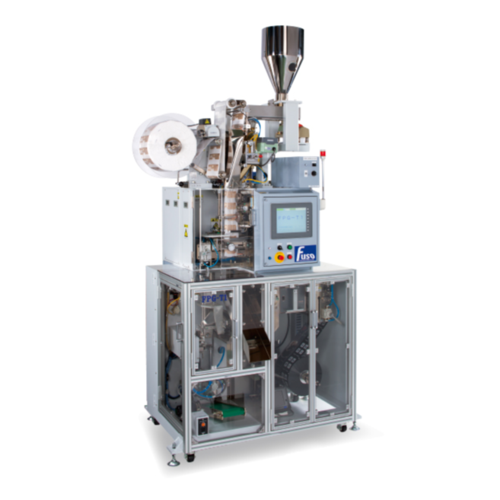

FPG-T1 Coffee Bag with Gas-filled Overwrap Packaging Machine

Model: FPG-T1

Category: Packing Materials/Packing Equipments

Booth No: N/A

Characteristic

Inner Bag Packaging Section
Packaging Method 3-Side Ultrasonic Sealing and Cutting
Measurement Method Standard: Slide Doser Weighing
Option: Load-Cell Weigher, Auger Filler
Packaging Materials Nylon, Non-Woven Fabric, and any suitable ﬁlters for ultrasonic sealing
Filter Width 120–200 mm
Bag Size Rectangular: 45–65 (W) x 60–90 (L) mm
Drip bag: 90 x 65–83 mm

Overwrapping Section
Packaging Method 3-Side Heat Sealing
Packaging Materials Laminated Film (PP, PE, etc.)
Film Width 140–220 mm
Overwrap Size Overwrap (for Rectangular): 70–100 (W) x 85–120(L) mm
Overwrap (for Drip Bag): 100–110 (W) x 120–135 (L) mm
Capacity Max. 50bags/min.
Dimensions 1,340 (W) x 1,140 (D) x 2,915 (H) mm
Weight 880 kg
Power Supply * 3-Phase / 200 V / 2.2 kW
Compressed Air * 320 L/min. (6 bar)
CE Marking ** Optional
