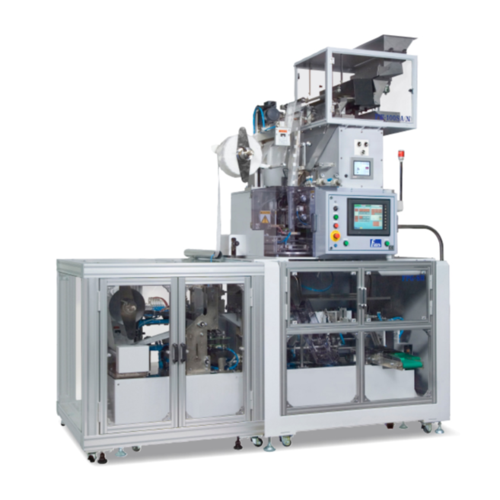

FPG-SH Tea Bag with Gas-flled Overwrap Packaging Machine

Model: FPG-SH/SF

Category: Packing Materials/Packing Equipments

Booth No: N/A

Characteristic

Inner Bag Packaging Section
Packaging Method 3-Side Ultrasonic Sealing and Cutting
Measurement Method Standard: Slide Doser Weighing
Option: Load-Cell Weigher, Auger Filler
Packaging Materials Nylon, Non-Woven Fabric, and any suitable ﬁlters for ultrasonic sealing
Filter Width 120–180 mm
Bag Size Triangular: 50-80 mm (each edge)
Rectangular : 40-80(W) x 50-80(L)mm

Overwrapping Section
Packaging Method 3-Side Heat Sealing
Packaging Materials Laminated Film (PP, PE , etc.)
Film Width 160–200 mm
Overwrap Size 80–100 (W) x 90–115 (L) mm
Capacity Max. 60 bags/min.
Dimensions 2,350 (W) x 1,420 (D) x 2,450 (H) mm
Weight 1,080 kg
Power Supply * 3-Phase / 200 V / 4.0 kW
Compressed Air * 650 L/min. (6 bar)
CE Marking ** Optional
