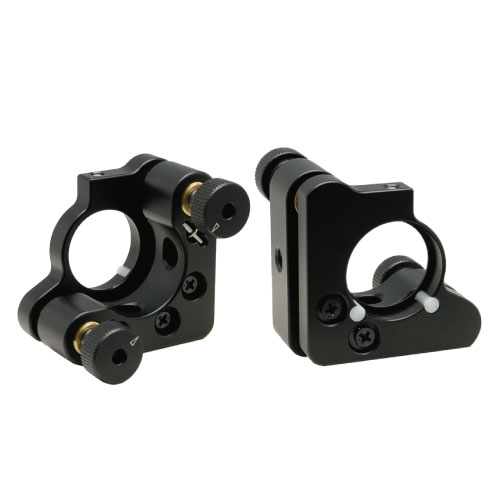

Precision Kinematic Mirror Mount With 2 Adjustable
Model: TNO-series
Category: Precision Optics
Exhibitor: OP MOUNT INSTRUMENT INC.
Booth No: P1022
Characteristic
• In addition to the common tension-type spring structure, the TNO-series mirror mount also incorporates a disc-type spring structure. The advantages of the disc-type spring with its smaller spring constant and larger spring force enable the mount to support heavier optical components. To avoid the spring force variation caused by the misalignment of disc-type springs, we have improved the structure of the disc-type spring, which enhances the overall stability of the TNO-series mirror mount.
• The mount can be combined with other mechanical structures using either M4-headed screws or M6 set screws.
