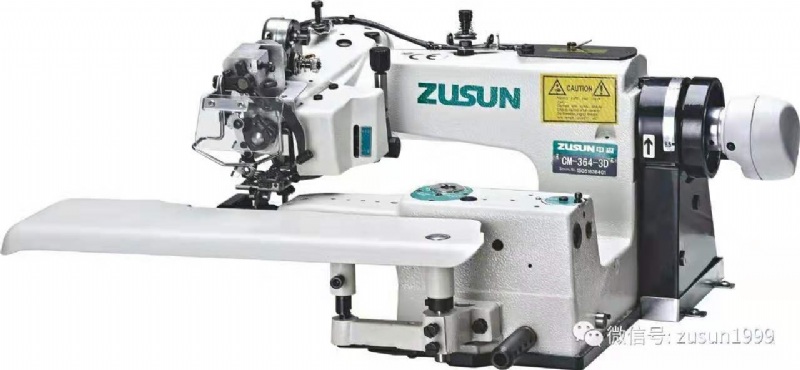

CM-364 COMPUTERISED DIFFERENTIAL POPULAR BLINDSTITCH MACHINE
Model: CM-364-QBD3
Category: Textile machinery
Exhibitor: ZHEJIANG ZUSUN SEWING MACHINE CO.,LTD
Booth No: 186
Characteristic
Function Characteristic:
1.Material widely used: In possession of adjustable press fitting, suitable to do various materials in different thickness.
2. Differential:In possession of adjustable feed dog, effectively keeping the movement of fabric in synchronization, make the cloth in good condition.
3. Automation: Auto thread trimmer, auto orientation and auto presser foot lifter.
Usage:
Fashion suits, skirts, trousers, pants, hemming cuffs, shirts, underwear, western suits, etc.
Specifications:
Stitch spec. Single thread chain stitch
Max speed: 1800 rpm/min
Stitch length: 3.2mm-8.5mm
Skip device: Skip 1 needle device (1:1, 2:1)
Needle: LWX6T 11#, 14#
Differential rate: 1.1-1.5
Motor: Clutch (4P/250W) motor or AC servo motor
Category:
CM-364-QBD3 Industrial differential blindstitch sewing machine with back-located drive motor (pneumatic auto thread trimmer, auto needle positioning and auto presser foot
lifter)
CM-364-BD Industrial differential blindstitch sewing machine with back-located drive motor
