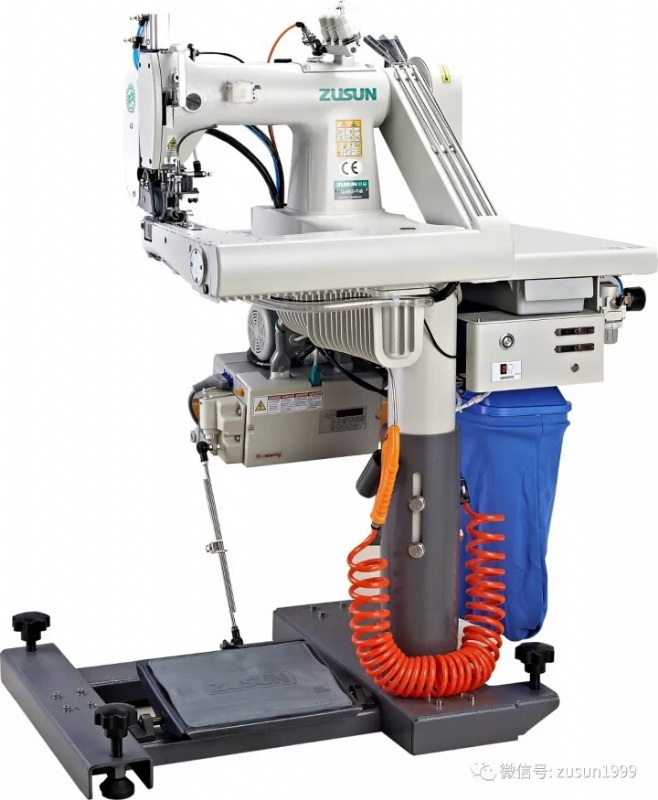

CM-9688 HIGH-SPEED FULL-FUNCTION FEED-OFF-THE-ARM MACHINE SERIES

Model: CM-9688XH-PF/CV-T-H9

Exhibitor: ZHEJIANG ZUSUN SEWING MACHINE CO.,LTD

Booth No: 186

Characteristic

Function Characteristic:
1.Key parts:Key parts with GIC high hardness coating process,extend the mahcine life.
2.Steel structure table&stand :Steel structure stand and table with wheels,convenient for moving the machine,performing steadily,low noise,low bibration.
3.Automation:Auto presser foot lifter,pneumatic puller ,needle cooler,silicone box thread cooler,auto thread trimmer of inhalation of thread.
4.Automatic refueling:To design the automatic oil supply system for circulating oil filtration and cooling.
5.Auto presser:To design the automatic adjustment presser lifter and ancillary feeding device.
6.Pullers:Adopt belt pneumatic control puller,The external gearbox is of infinite speed adjustment.

9688Compare with 9588
1. Appearance design:Refer to the design appearance of German industrial machine.
2. Automatic refueling:The upper and lower shafts are supplied with oil, which guarantees the lubrication of parts.
3. Sinking tank:To avoid high speed pressure resulting in oil leakage, oil cooling, large storage.

Category:
CM-9688XH-PF-H9
Three needles high-speed full-function feed -off-the-arm machine (thick material pneumatic control belt puller)

Specifications:
Stitch spec. Chain stitch sewing
Max speed: 5000 rpm/min
Stitch length:2.6mm-4.8mm
Needle quantity:3 needles
Adopt needle:TVX5 21#
Motor:Hanging servo motor
H9:HOHSING full-function hanging motor
