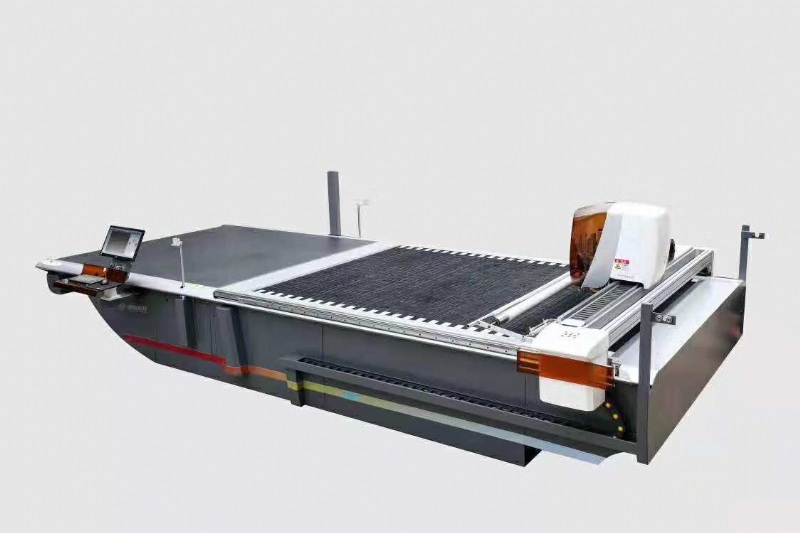

Auto Cutting Cloth Machine



Model: HB-2028A

Category: Fabric

Exhibitor: VIET THUAN THIEN COMPANY LIMITED

Booth No: 127



Characteristic



CUTTING GENERAL SPECIFICATION
Max cutting height: 70 mm (after pressure)
Cutting height: 2,000 mm
Cutting length: 2,800 mm
Length of fabric table: Unlimited
Method: Knife reciprocation
Knives: 6 ~ 8 mm with auto sharpener
Cutting speed: 60 m / min
Accuracy: Resolution (0.05 mm); Accuracy (0.025 mm)
Head speed: 4,000 rpm
Conveyer area: Nylon Bristle (100 x 100 mm)
Vacuum method: Vacuum box type, Blower motor with inverter control

COMPUTER CONTROL SYSTEM
Window Series
Operating PC: General PC (Window Series)
Data import:
+ CAD Data connection
+ Cutting schedule software
+ Available for advanced input of order & parameter

GENERAL SPECIFICATION
Language: English, Chinese
Power:
AC380V (3 pha), 50HZ, 30KW
AC380V (3 phases), 50HZ, 30KW
Dimension: 6,000 x 3,000 x 1,700 mm
Weight: 3,500 kg



Related Products



•

  Template Pattern Cutter

•

  High Speed Inkjet Plotter

•

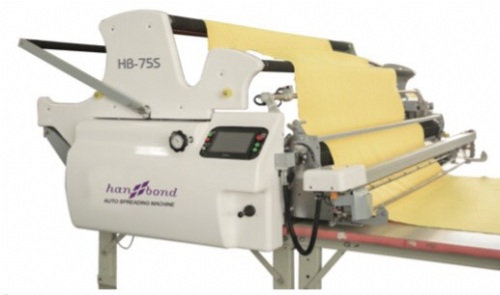

  Auto Spreading Cloth Machine

•
