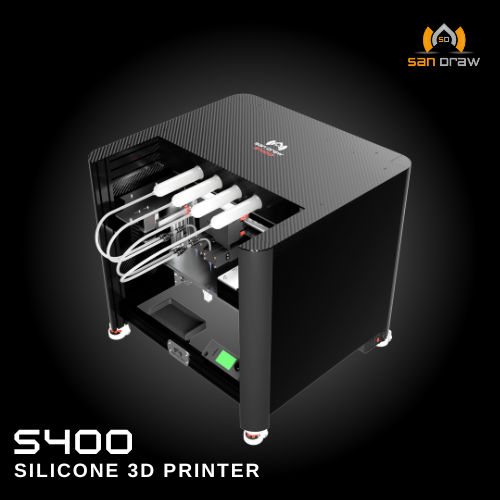

S400 Silicone 3D Printer



Model: S400 Silicone 3D Printer

Category: Manufacturing Equipment and Components

Exhibitor: SAN DRAW INC.

Booth No: S106



Characteristic



S400 is the world's first large-size silicone 3D printer featuring a motorized screw feeding system combined with a ball screw linear module motion system. It supports 4 axes and is San Draw's flagship model for 2024. Based on the design of S180 and S300, S400’s 4 axes can print with two sets of two-part silicone or use water-soluble support material, making it a highly versatile and professional-grade silicone 3D printer that meets a wide range of applications and needs.

Equipment Features:
👉🏻 Equipped with patented FAM (Fluid Additive Manufacturing) technology, INPA (Independent Nozzle Position Adjustment) technology, and IMSS (Instant Material Stop System) technology
👉🏻 Capable of printing with water-soluble support material, making S400 ideal for printing free-form surfaces and thin-walled objects
👉🏻 Compatible with San Draw's exclusive biomedical-grade two-part silicone, which has excellent biocompatibility and can withstand temperatures up to 250°C
👉🏻 Features automatic calibration sensors and electric control valve
👉🏻 Outstanding printing precision (XY axis positioning accuracy ±0.02mm)
👉🏻 Comes with an LCD control panel for easy operation

Product specifications:
1. Equipped with San Draw's exclusive FAM fluid layering manufacturing technology
2. Comes with San Draw's proprietary FAMufacture software
3. Compatible with five types of dual-liquid 3D printing silicones and water-soluble support materials
4. Uses CNC aluminum alloy components extensively, creating a sturdy and lightweight body
5. Printing range: 235 x 270 x 150 mm
6. XY repeat positioning accuracy: ±0.02mm
7. Printing layer thickness: 0.05~0.2mm
8. Equipped with electronic control valves at the top of the nozzle
9. Equipped with an automatic height sensing sensor for the nozzle
10. Equipped with a safety protection device for the feeding system
